Residential Seamless Gutter Installation Standards
Slope, Mounting Practices, and Warranty Considerations
Purpose
The purpose of this document is to define practical installation standards for seamless residential gutter systems applicable across most regions of the United States.
These standards establish baseline practices for mounting methods, fastener selection, hanger spacing, and slope calculation.
Secondary considerations address regional conditions, roof construction variables, and manufacturer warranty constraints that may influence the application of these standards in specific circumstances.
1. Installation Hardware and Mounting Systems
Historically, seamless gutter systems were installed using spike-and-ferrule fasteners. While this method remains conditionally appropriate for certain historic restoration applications, it is generally considered obsolete for modern residential installations.
Standard practice for contemporary seamless aluminum gutter systems—excluding half-round profiles—should utilize hidden hangers. Hidden hangers are internal structural brackets that secure the gutter to the fascia without penetrating or deforming the front face of the gutter.
2. Hanger Spacing Standards
Hanger spacing must account for regional climate conditions, expected snow load, and structural considerations. As a general standard:
Maximum hanger spacing should not exceed 30 inches.
24-inch spacing is recommended in temperate regions.
In heavy snow regions, hanger spacing should be reduced to 12–16 inches, or a continuous hanger system may be used.
Examples of continuous hanger systems include those manufactured by Alu-Rex.
Half-Round Hanger Considerations
Half-round gutter systems commonly utilize decorative cradle hangers. These hangers are frequently spaced according to aesthetic design preferences and budget considerations rather than structural performance.
To maintain structural reliability:
· Decorative cradle hangers may be spaced according to architectural preference.
· Supplemental hidden brackets should be installed internally to maintain structural spacing below 30 inches.
Spacers may be required to accommodate mixed hanger types. These spacers may be commercially available or fabricated as necessary.
A practical consideration in hanger spacing is to consider a homeowner putting a ladder up against the gutter to clean them out, will that ladder be supported by at least 1 hanger?
3. Fastener Selection Standards
Fastener selection should account for structural performance, corrosion resistance, and compatibility with installation materials.
Key considerations include:
· Fastener Diameter – Fasteners should be #10 - #12.
· Fastener Lengths – length must be sufficient to penetrate the hanger, gutter material, and structural substrate.
· Bare steel and bright zinc fasteners should be avoided.
· Coated steel fasteners are generally appropriate for aluminum and steel installations.
· Stainless steel fasteners are recommended for copper systems. (Coated Screws may be used in some cases)
· Fasteners should be selected to avoid galvanic corrosion between dissimilar metals.
· An example of coated installation fasteners commonly used in the industry includes Ruspert-coated fasteners manufactured by Senox.
Seal Washer Considerations
The use of seal washers is frequently debated among installers. However, the conditions present in gutter installation differ significantly from those found in metal roofing systems.
In metal roofing applications, the fastener assembly typically follows this configuration:
Fastener Head → Seal Washer → Roofing Panel → Substrate
This configuration allows the washer to create a watertight seal at the exposed roof surface.
In gutter installations the configuration is typically:
Fastener Head → Seal Washer → Hanger → Drip Edge → Gutter → Substrate
Because multiple layers exist between the washer and the structural substrate, the seal washer provides minimal functional benefit in preventing water intrusion.
Additionally, the presence of the washer reduces the effective penetration length of the fastener.
4. Structural Substrate Considerations
Fascia construction must be evaluated before installation.
When gutters are installed over decorative trim elements such as: Drip Mold, Crown Trim, or Stepped Fascia, fasteners must extend beyond these elements and penetrate structural framing whenever possible.
Decorative trim boards are often attached using light-gauge brads or staples and should not be relied upon as structural support for gutter systems.
Attachment to trim elements may result in complete system failure while the gutter remains attached to the detached trim board.
Wedge and Bumper Supports
The rear of the gutter should ideally be fully supported by the fascia board. When this condition cannot be achieved due to trim profiles or fascia irregularities, supplemental supports should be installed.
Common solutions include:
T-wedges
Gutter Bumpers
Full-length E-wedges
These devices should not be considered additional support, but rather corrective supports intended to restore proper contact between the gutter and the fascia.
5. Drip Edge Interface Standards
In most installations, gutters should be positioned behind the drip edge to ensure that roof runoff flows directly into the gutter trough.
However, regional practices and roofing installer requirements occasionally restrict this configuration. In certain coastal regions—particularly along the Gulf and Atlantic coasts—roofing contractors may prohibit:
penetrating drip edge with fasteners
installing gutters behind the drip edge
These restrictions are frequently related to roofing warranty provisions rather than building codes. Legitimate building codes concerning these practices are extremely rare.
It is good practice to research these subjects locally rather than taking another contractor at his word. In situations where another contractor, and not the local building code are introducing restrictions, referencing this document may serve as a valuable resource tool to make a proper installation option available.
Regardless of installation configuration, a continuous water cascade must exist from the roof surface into the gutter trough.
A typical cascade sequence should resemble:
Roof Ridge → Roof Surface → Underlayment → Drip Edge → Gutter → Downspout
The cascade does not need to be completely watertight but must prevent water from entering the wall, soffit or falling behind the gutter.
Half-Round Counter-Flashing
When half-round gutters are installed using decorative cradle hangers, the gutter may be spaced away from the fascia due to hanger thickness.
In these installations, additional counter-flashing is often required to re-establish the water cascade from the drip edge into the gutter trough.
6. Gutter Slope Standards
Our guideline for gutter slope is:
1 inch of fall per 100 feet of gutter run
or
¼ inch of fall per 25 feet
However, slope should not be treated as a fixed rule.
In practice, downspout location and outlet capacity have a significantly greater influence on system performance than slope alone.
Excessive slope can produce visually unappealing installations and may cause otherwise well-installed systems to appear poorly constructed.
As a general guideline, if gutter slope is easily visible to the unaided eye, the slope is probably excessive.
Practical Slope Calculation

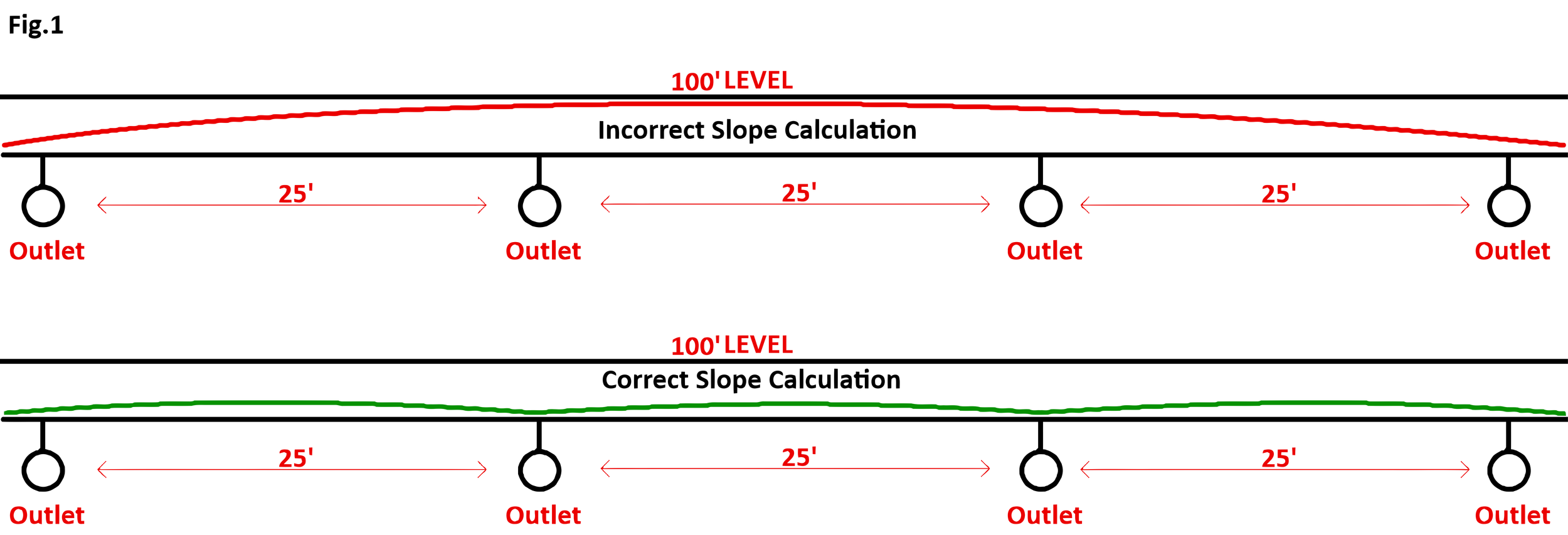

Slope should be calculated per outlet, not per total run length.
Example:
A 100-foot gutter run with four evenly spaced outlets should not contain a continuous 1-inch drop.
Instead, it should contain four separate ¼-inch drop, each directing water toward its respective outlet.
(Fig.1)
These principles make for a functional and visually pleasing installation.
These principles can also scale into unusual applications, for instance a 75’ single outlet run would have ¾” of drop from one end to the other, visually bordering excessive but matching the visual impact of the unusual span, all while allowing proper functionality.
If you are in a situation where there is an excess of debris that could accumulate and cause stoppages. Consider using leaf guard rather than increasing slope. Additional slope in such cases doesn’t rid the gutter of the debris and in some cases increases the occurrence of stoppages. It’s a good idea to add a clause to your marketing material, as well as your warranty that encourages the application of leaf guards in these scenarios.
7. Thermal Expansion and Span Limitations
Most gutter material manufacturers specify maximum span lengths before expansion joints are required.
Typical examples include:
50-foot maximum spans recommended by Senox
40-foot maximum spans recommended by Norandex
These limits are primarily intended to protect manufacturer warranty exposure rather than represent universal performance thresholds.
In many regions strict adherence to these span limitations would require seams in the majority of seamless gutter installations. This is an unreasonable position and must be weighed against practicality.
A type of off-label use may make more sense in your region, where an installer may elect to dispense with the manufacturer’s warranty (and application recommendations) and rely solely on their own internal warranty based on field experience.
In this case, switching from .027 to .032 can make a measurable difference in the occurrence of ‘heat-buckle’ and allow you to reliably get longer spans.
Our professional standards:
· Maximum 60’ span lengths before expansion joint on .027 gutters.
· Maximum 80’ span lengths before expansion joint on .032 gutters.
· Joint installation must allow for lateral movement with a minimal amount of restriction.
The cost of ignoring a manufacturer’s warranty: Decades of field experience says that a gutter material manufacturer’s warranty is an impotent document that offers virtually nothing to the installer, or the homeowner; On the contrary, they immunize the manufacturer from all claims by regulating the product usage, installation practices (as mentioned), and maintenance requirements to an impractical level.
V.1.0 03.07.26
Authors:
Seth Forrestier
Kilgore, TX
The Gutter Guy
Reviewers:
Signatories
Professionals and contractors who support these standards may request to be listed as signatories with backlinks.
Contact: Seth@TheGutterGuy.com
