Gutter and Downspout Sizing Principles in Residential Applications

Abstract

This paper examines the functional criteria influencing seamless gutter and downspout sizing in residential construction across the United States. By evaluating regional rainfall intensity, severe weather exposure, roof catchment area, and market constraints, this document identifies practical and performance-oriented guidelines for residential gutter system sizing. While product availability and economic pressures affect final installation decisions, consistent proportional relationships emerge that inform rational sizing standards.

Introduction

Seamless aluminum gutter systems are commonly stocked in nominal 5”, 6”, and less frequently 7” sizes. Downspouts are typically available in 2”×3”, 3”×4”, and occasionally 4”×5” configurations, depending on regional supply chains.

It is critical to distinguish between profile shape and functional size.

Profile refers to the aesthetic and geometric form of the gutter or downspout (e.g., fluted, smooth box, round, K-style, straight-face). Size refers to functional water-carrying capacity, determined primarily by:

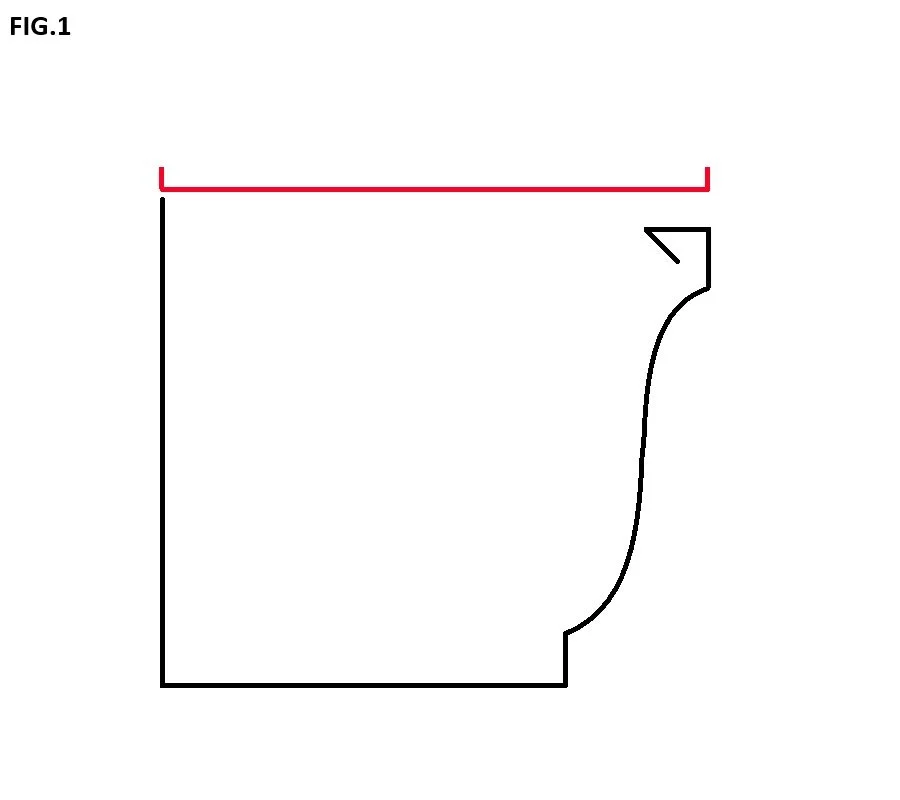

The top width and cross-sectional area of the gutter (Fig.1)

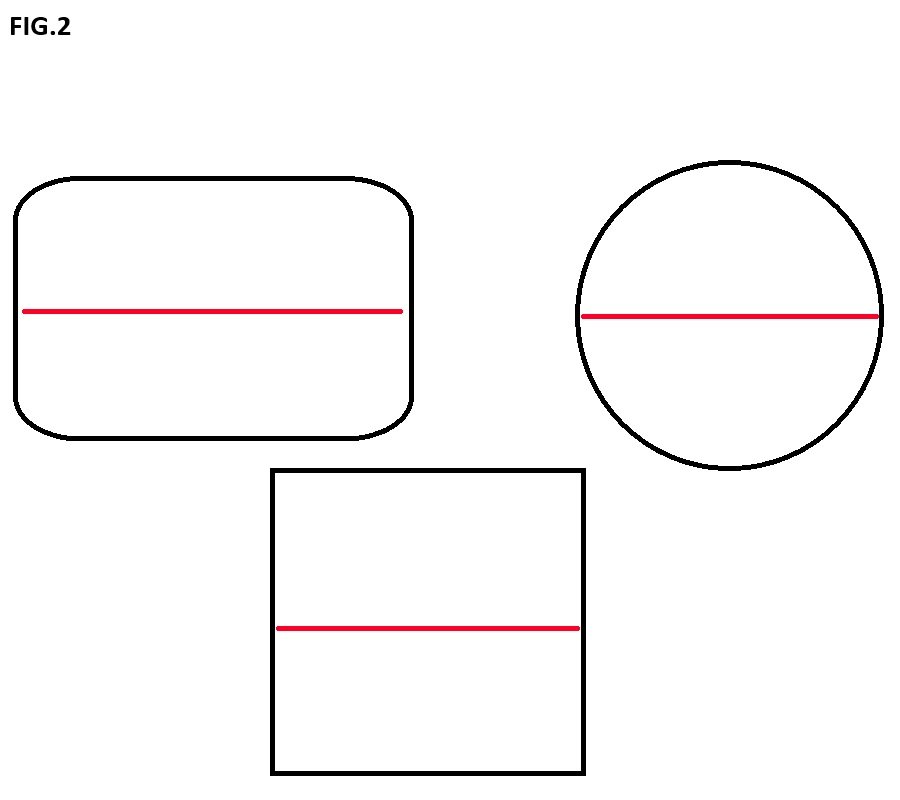

The largest interior dimension of the downspout (Fig.2)

This paper limits its exploration to functional sizing categories rather than stylistic distinctions:

3” Downspout – Any style whose largest dimension measures approximately 3” (e.g., 2”×3”, 3” round, 3”×3” box)
4” Downspout – Any style whose largest dimension measures approximately 4” (e.g., 3”×4”, 4” round, 4”×4” box)
5” Downspout – Any style whose largest dimension measures approximately 5” (e.g., 4”×5”, 5” round, 5”×5” box)

The central concern is hydraulic adequacy — not aesthetic preference.

Approximate Water Volume by Nominal Gutter Size

(Values represent rough averages and do not account for minor variations in profile geometry.)

Nominal Gutter Size

Gallons per Linear Foot (Approx.)

5” ~1.0 gallon

6” ~1.7 gallons

7” ~2.3 gallons

The increase in capacity is non-linear; nominal upsizing represents a substantial hydraulic gain.

1. Identification of Distinct Climate Regions in the United States

For gutter sizing purposes, the United States may be broadly categorized into functional rainfall regions:

Arid / Semi-Arid (Southwest, Intermountain West)
Moderate Rainfall (Midwest, portions of the Northeast)
High Rainfall (Southeast, Pacific Northwest)
Coastal Hurricane-Prone (Gulf Coast, Atlantic Coast)
Snow-Dominant (Upper Midwest, Northern Plains, Mountain West)

While annual rainfall totals are frequently cited, rainfall intensity per minute is often more relevant to gutter performance than yearly accumulation.

Short-duration, high-intensity storm events place significantly greater demand on system capacity than steady moderate rainfall.

2. Rainfall Totals and Intensity Considerations

Regional rainfall data reveal distinct performance demands:

The Southeast experiences both high annual rainfall and high-intensity storm events.
The Pacific Northwest sees high annual totals but often with lower peak intensities.
Arid regions receive low annual totals yet may experience sudden high-volume monsoon events.

In most cases, residential gutter systems should be designed to manage peak intensity events rather than annual averages.

Accordingly, sizing decisions should prioritize:

Peak rainfall rate
Roof surface area contributing to each gutter run

3. Severe Weather Considerations

Regional stressors extend beyond simple water volume.

Snow-Dominant Regions

Ice accumulation reduces effective gutter capacity.
Snow and ice slide can deform undersized systems.
Larger nominal sizes provide both structural rigidity and volume buffer.

(Snow and ice stressors are more importantly calculated into material selection and mounting procedures than into capacity and flow.)

Hurricane / Coastal Regions

Wind-driven rain increases instantaneous water entry rate.
Tropical systems produce extreme short-term loads.
Upsizing reduces overflow risk during rare but high-impact events.

4. The Role of Roof Size

Roof catchment area is a primary determinant of drainage demand.

Critical variables include:

Total roof square footage
Length of gutter runs
Number of roof planes draining into a single run
Valley concentration points

A 1,200 sq ft single-plane roof imposes dramatically different hydraulic demand than a 3,500 sq ft multi-valley roof section discharging into a single run.

As catchment area increases, performance must be maintained by:

Increasing gutter size
Increasing downspout quantity
Or implementing both adjustments

5. Relational Sizing Between Gutter and Downspout

A consistent proportional relationship is observed across most residential markets:

Nominal Gutter Size – 2 inches ≈ Downspout Size

Examples:

5” gutter → 3” downspout
6” gutter → 4” downspout
7” gutter → 5” downspout

This proportional pairing maintains hydraulic balance within the system.

An undersized downspout creates a bottleneck even if gutter capacity is sufficient. Conversely, oversizing the downspout while retaining an undersized gutter yields limited improvement, as collection capacity remains constrained.

System balance is critical.

6. Outlet Size

The outlet serves as the transition between horizontal collection and vertical discharge.

An outlet smaller than the downspout restricts effective capacity regardless of pipe size below.

Best practice suggests that the outlet opening should approximate the full interior dimension of the downspout as closely as available products allow, minimizing constriction at the transition point.

The following values represent approximate theoretical discharge capacity under ideal vertical flow conditions. Actual performance varies drastically based on vertical drop, friction loss, downspout fittings, system slope and volume compared to capacity of the gutter system.

Evacuation speed of outlets in

Gallons per Min (Approx.)

3” ~220 gallon

4” ~390 gallons

5” ~612 gallons

7. Roof Material and Slope

Roof surface characteristics significantly affect gutter performance.

Smooth metal roofs and steep-pitched shingle roofs generate faster-moving water with increased splash velocity at the eave line.

In such conditions:

Water may overshoot narrower gutters.
Additional nominal width improves capture efficiency.

High-velocity discharge conditions often justify upsizing independent of total rainfall volume.

8. Downspout Location Relative to Water Load

Downspout placement materially affects system performance.

Key field-based guidelines include:

Valley discharge areas should be supported by nearby downspouts.
Concentrated valley discharge restricts lateral flow around inside corners; dead-end runs exceeding approximately 10 feet from an inside corner should be avoided without a downspout.
Gutter runs exceeding 40 feet should avoid single-terminal discharge when feasible.
5” systems should target approximately 25 feet of gutter per downspout.
6” systems may reasonably extend to 35 feet per downspout under moderate rainfall conditions.

Real-World Hydraulic Comparison

To illustrate the practical implications of rainfall intensity on nominal gutter sizing, consider two representative storm scenarios.

These examples assume:

A 25’ × 25’ roof section (625 sq ft catchment area)
Even distribution into a single 25-foot gutter run
No slope inefficiencies or friction losses (idealized condition)

These values are simplified for comparative purposes.

Scenario 1: High-Intensity Storm in East Texas

Observed peak rainfall intensity:
0.04 inches per minute

Step 1: Water Volume Generated

625 sq ft roof area × 0.04 inches per minute ≈ 19 gallons per minute

Step 2: Gutter Storage Capacity (25-foot run)

5” gutter (~1 gallon per foot) → ~25 gallons total capacity
6” gutter (~1.7 gallons per foot) → ~42 gallons total capacity

Performance Interpretation

Under these conditions:

A 5” gutter approaches full capacity in little more than one minute of sustained peak rainfall.
This leaves minimal tolerance for:
- Valley concentration
- Inside corners restricting lateral flow
- Splash velocity
- Minor debris accumulation
A 6” gutter provides approximately 42 gallons of holding capacity — more than a 50% increase over the 5” system — creating meaningful hydraulic margin.

Scenario 2: Tropical Storm Conditions in Florida

Observed peak rainfall intensity:
0.10 inches per minute

Step 1: Water Volume Generated

625 sq ft roof area × 0.10 inches per minute ≈ 39 gallons per minute

Step 2: Gutter Storage Capacity (25-foot run)

5” gutter → ~25 gallons total capacity → Immediate overflow under sustained peak intensity
6” gutter → ~42 gallons total capacity → Minimal performance margin
7” gutter → ~57 gallons total capacity → Provides meaningful buffer for:
- Valley concentration
- Corners
- Partial debris obstruction
- Short-duration peak surges

Note: While gutters function primarily as conveyance systems rather than storage vessels, total linear capacity provides a useful proxy for surge tolerance during short-duration peak intensity events.

Observational Conclusion

These examples demonstrate a critical principle:

As rainfall intensity increases, nominal upsizing yields disproportionately greater hydraulic resilience.

The jump from 5” to 6” is substantial.
The jump from 6” to 7” becomes strategically important in extreme rainfall regions.

While these values represent simplified hydraulic models and not code-based requirements, they provide performance-oriented benchmarks illustrating why regional rainfall intensity must influence sizing decisions.

9. The Role of Leaf Protection in Sizing Considerations

The incorporation of leaf protection systems can influence sizing strategy by reducing the likelihood of outlet obstruction.

When outlet blockage risk is minimized, designers may extend allowable run length with only an increase in downspout size to maintain hydraulic performance — particularly in long-run, single-discharge configurations.

10. Cost Considerations and Market Realities

Residential construction frequently prioritizes cost efficiency.

Observed market patterns include:

Tract homes and “affordable housing” developments under approximately 1,500 sq ft commonly utilize 5” systems regardless of regional rainfall intensity.

These smaller homes often include compound valley conditions near entries, yet the marginal cost increase for larger nominal systems is frequently rejected at the development level.

In coastal or extreme rainfall regions, residential installations may approach light commercial sizing (e.g., 7” gutter with 5” downspouts) to establish a meaningful performance margin.

Sizing decisions therefore exist along a spectrum between cost optimization and functional resilience.

Conclusion

Residential gutter sizing is primarily influenced by:

Regional rainfall intensity
Severe weather exposure
Roof catchment area
Product availability
Market positioning

From these variables, practical guidelines emerge:

Relational Sizing Principle: Gutter size minus approximately 2 inches corresponds to appropriate downspout size.
5” Systems: Approximately 25 feet of gutter per downspout is a reasonable performance target.
6” Systems: May expand up to 35 feet per downspout under moderate rainfall conditions without sacrificing function.
Moderate to Heavy rainfall regions: 4” downspouts often represent a practical baseline.
Coastal Regions: 7” gutter systems provide increased hydraulic margin.

Especially where economic constraints result in minimal sizing, certain installation practices reduce overflow risk:

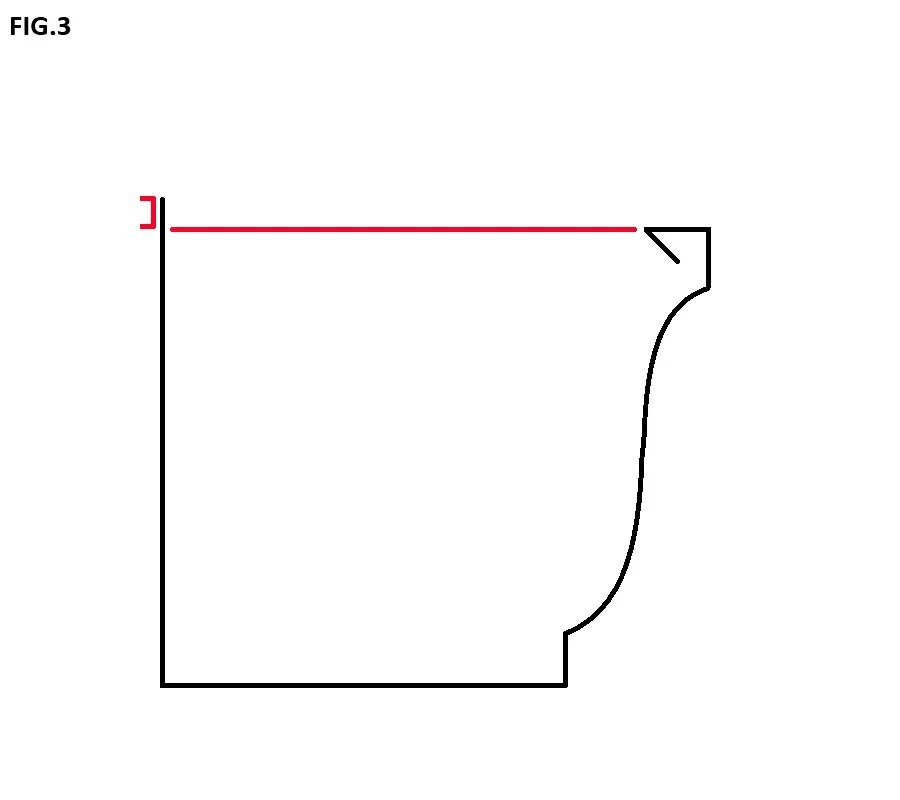

Ensure gutter machine is properly adjusted with the back of the gutter taller than the front lip. (Fig.3)

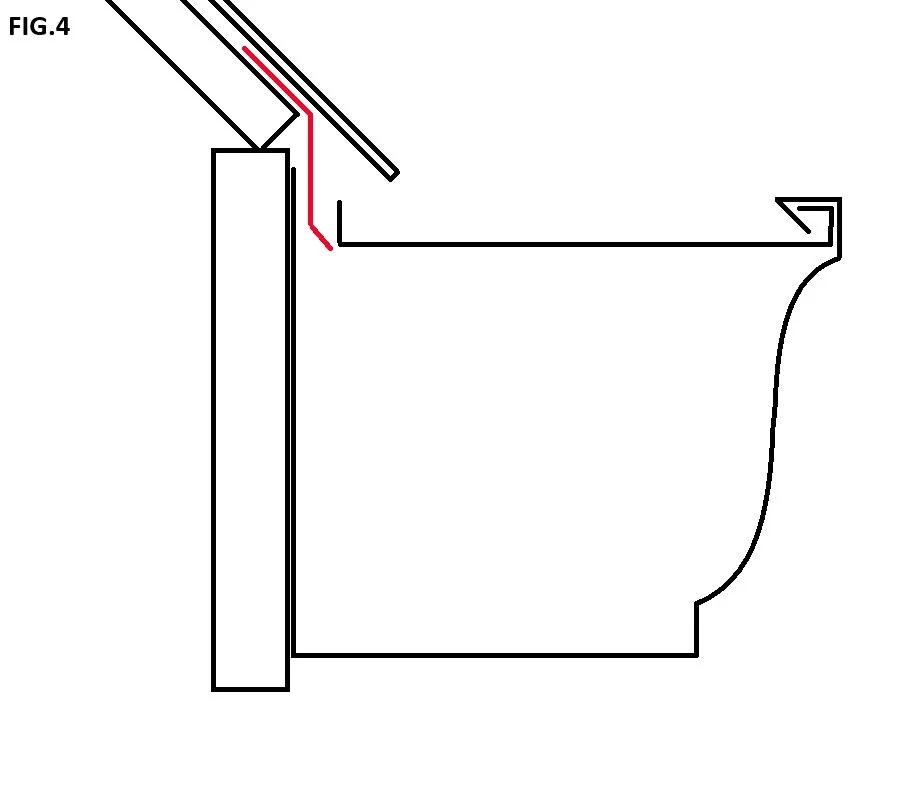

Install gutters behind the drip edge when feasible. (Fig.4)(note: coastal regions may have specific building codes or accepted practices that interfere with what are best installation practices in other regions.)

Always avoid configurations that allow overflow to access wall cavities or interior assemblies.

Ultimately, sizing decisions represent a balance between hydraulic adequacy, economic constraint, and regional demand. Thoughtful proportional sizing significantly reduces the likelihood of overflow, erosion, and structural water intrusion.

This paper presents performance-oriented field benchmarks rather than prescriptive code requirements. Local building codes, municipal drainage standards, and manufacturer specifications may supersede these guidelines. However, when evaluated against real-world rainfall intensity and catchment conditions, proportional upsizing consistently improves system resilience.

V.1.0 03.05.26

(v.1.1 04.12.26 – addition of DC Gutter Pro as Reviewer)

Authors:

Seth Forrestier

Kilgore, TX

The Gutter Guy

www.TheGutterGuy.com

Reviewers:

MacDaniel Dever

Conroe,Tx

DC Gutter Pro

www.dcgutterpro.com
